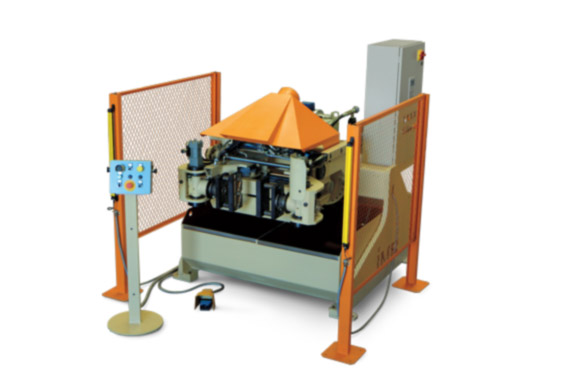

IMR C40H, C55H, C60X Gravity Die Casting Machine


IMR C40H, C55H, C60X Gravity Die Casting Machine Diecasting Machines
IMR C40H, C55H, C60X Gravity Die Casting Machine Diecasting Machines
IMR C40H, C55H, C60X Gravity Die Casting Machine Diecasting Machines
IMR C40H, C55H, C60X Gravity Die Casting Machine Diecasting Machines
IMR C40H, C55H, C60X Gravity Die Casting Machine Diecasting Machines

Click pictures to enlarge.

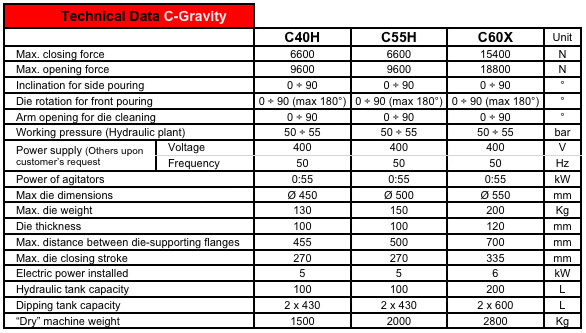

Technical Specifications
CategoryDiecasting Machines
StateNew
BrandIMR
ModelC40H, C55H, C60X Gravity Die Casting Machine
Details



This machine is used for the casting of brass and other copper alloys poured by gravity into the die, to obtain medium/large size pieces or small size pieces by using multi-cavity dies.

C40H

The dies carried on the machine can swing up to a diameter of 450 mm and with a maximum distance between the die-supporting flanges of 455 mm.
The machine, being a new generation gravity casting machine, is designed taking into consideration operator safety and ergonomics.

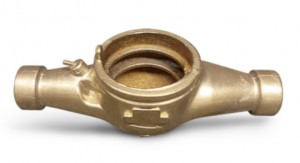

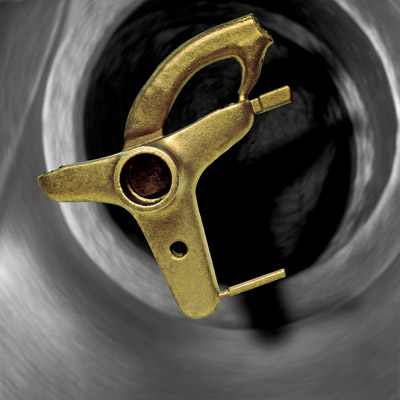

Output Sample


The main characteristics of this new concept machine are as follows:
•    Mechanical structure, which is far more robust, with all vital parts mounted in accessible and protected positions.
•    The dipping tank is an independent unit and can be easily removed if necessary. Furthermore during operation they are protected from sand, grease and oil accidentally falling into them.
•    The machine is supplied with a variable displacement pump, allowing to extend the life of the pump and to be much more silent.
•    Hydraulic and electric components, cylinders, and valves are also standard for easy replacement.

 General Characteristics

  • Frontal and side pouring
  • Independent dipping tanks
  • Presetting of dipping angle
  • Frontal positioning of dies for assembling and cleaning
  • Bench tilting and die closing adjustable for different die types
  • Die rotation in dipping tanks while submerged
  • Emergency pushbutton for die opening
  • Safety valves on cylinder for bench tilting
  • Static limit switch no mechanical contact)
  • Mechanical movements on conical bearing
  • Adjustable flow rate pump
  • Led on hydraulic valves
  • Led on limit switch
  • Counter for pouring count

C60X
